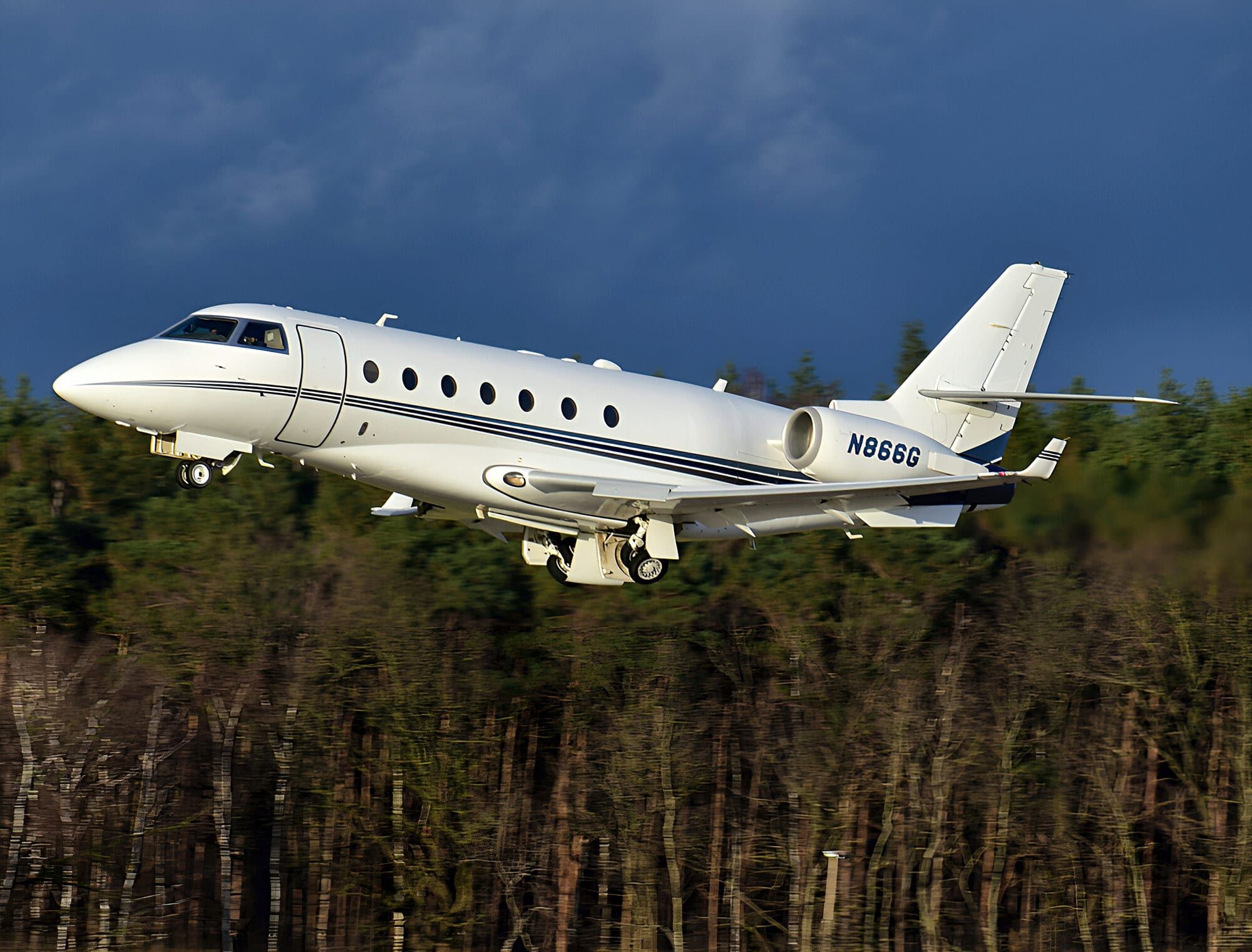

Photograph 2: 2000 Gulfstream G200

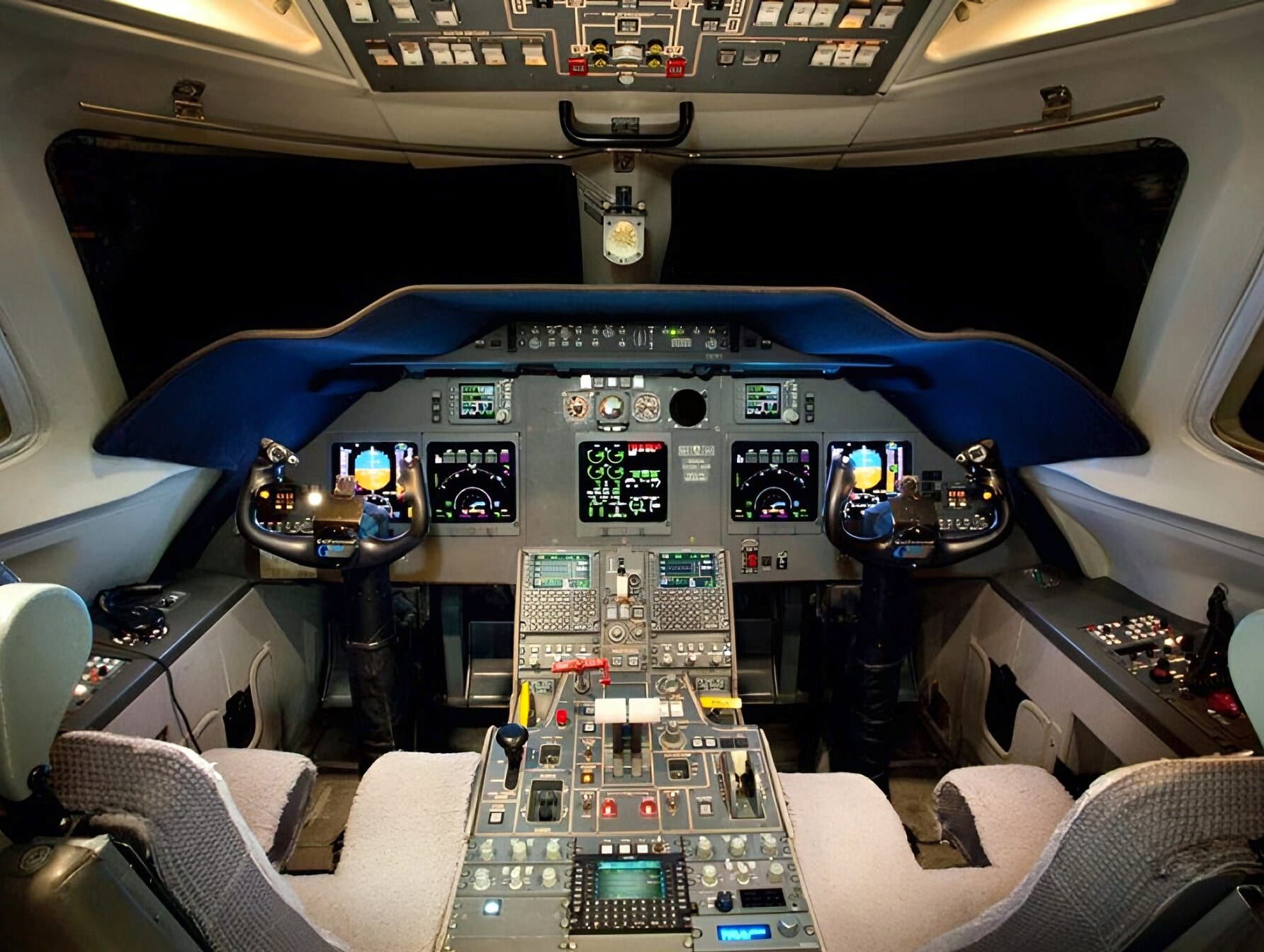

Photograph 3: Flight deck – Collins Pro Line 4, three FMS

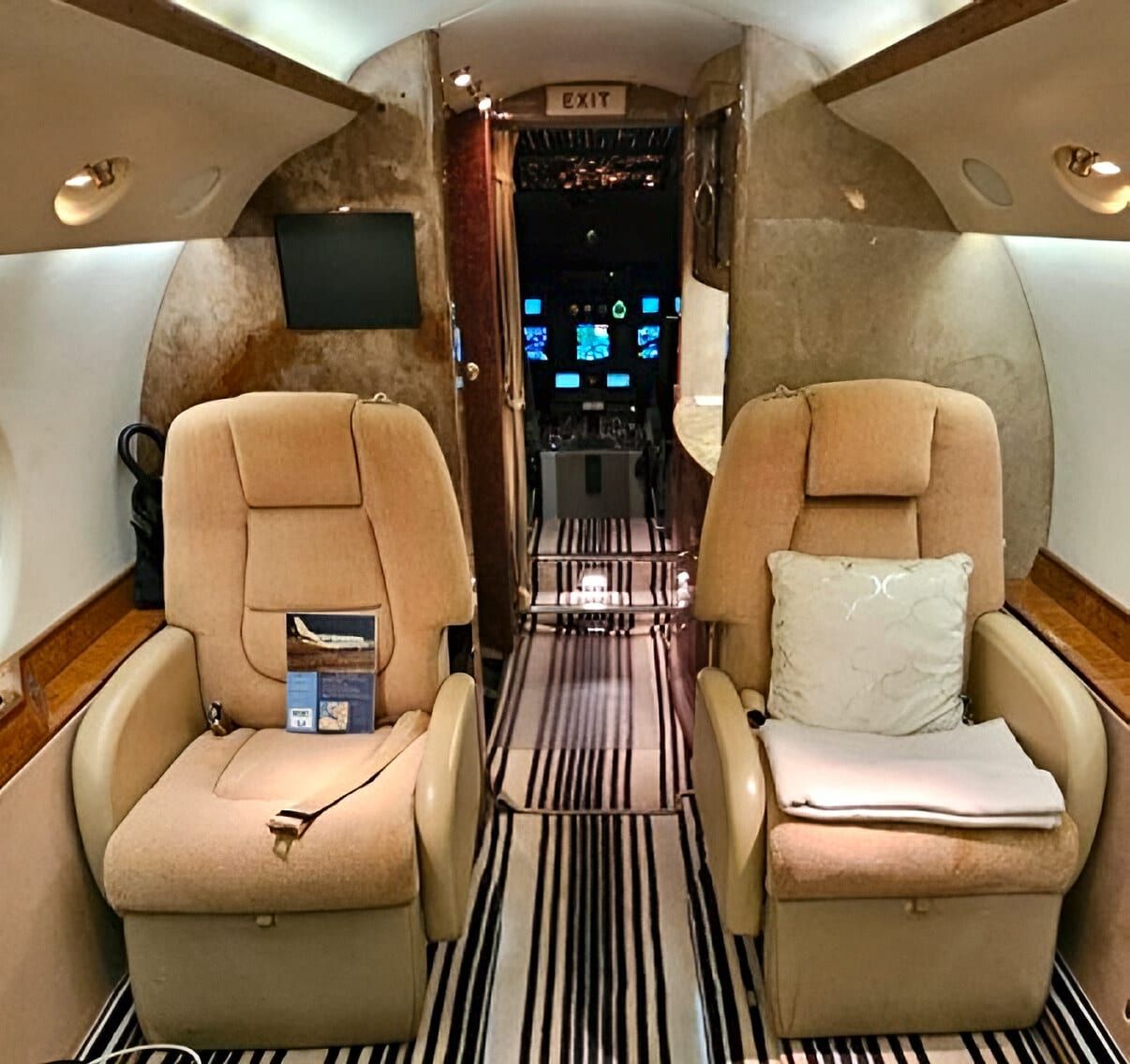

Photograph 4: Forward cabin – club seating

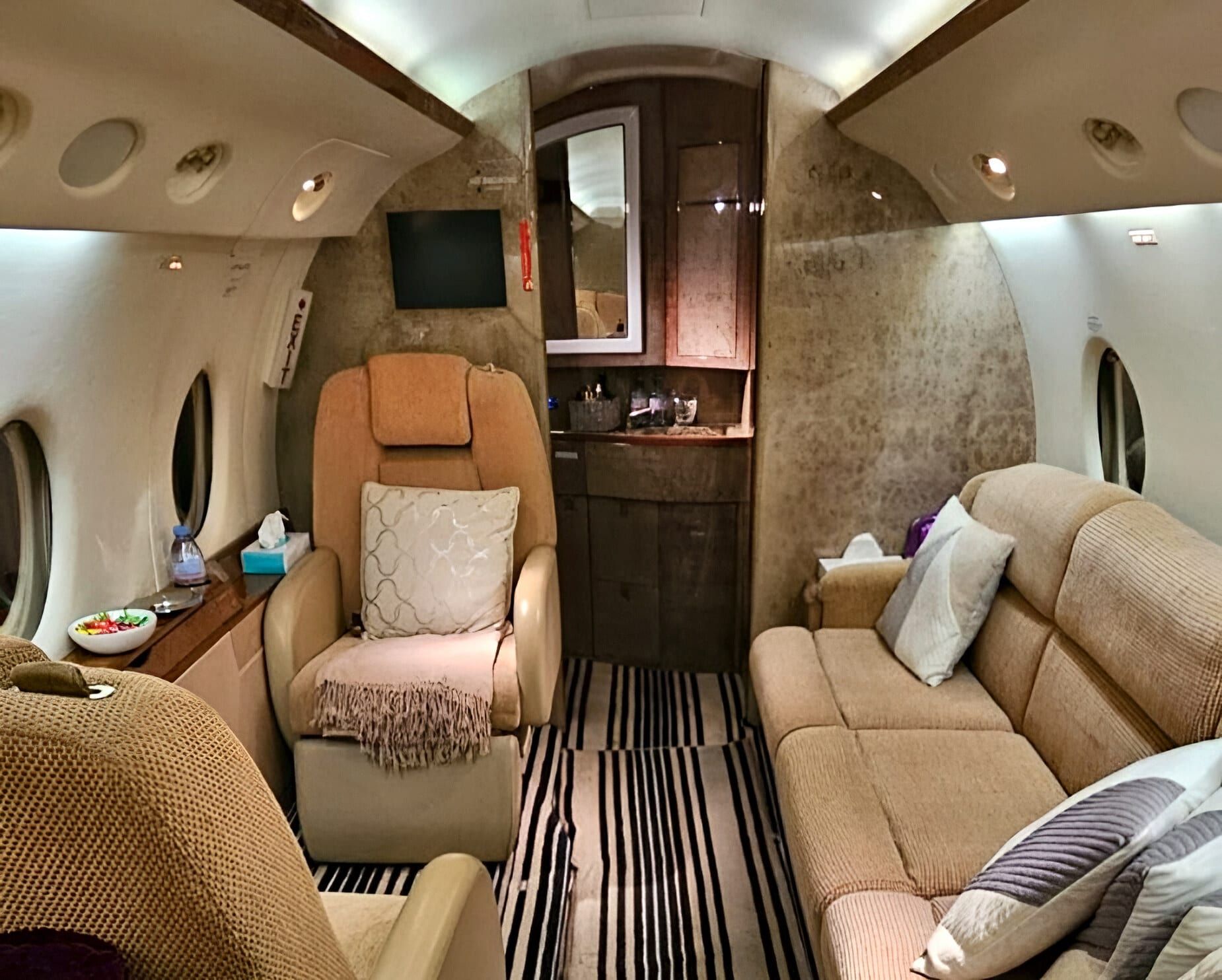

Photograph 5: Aft cabin – seats and divan

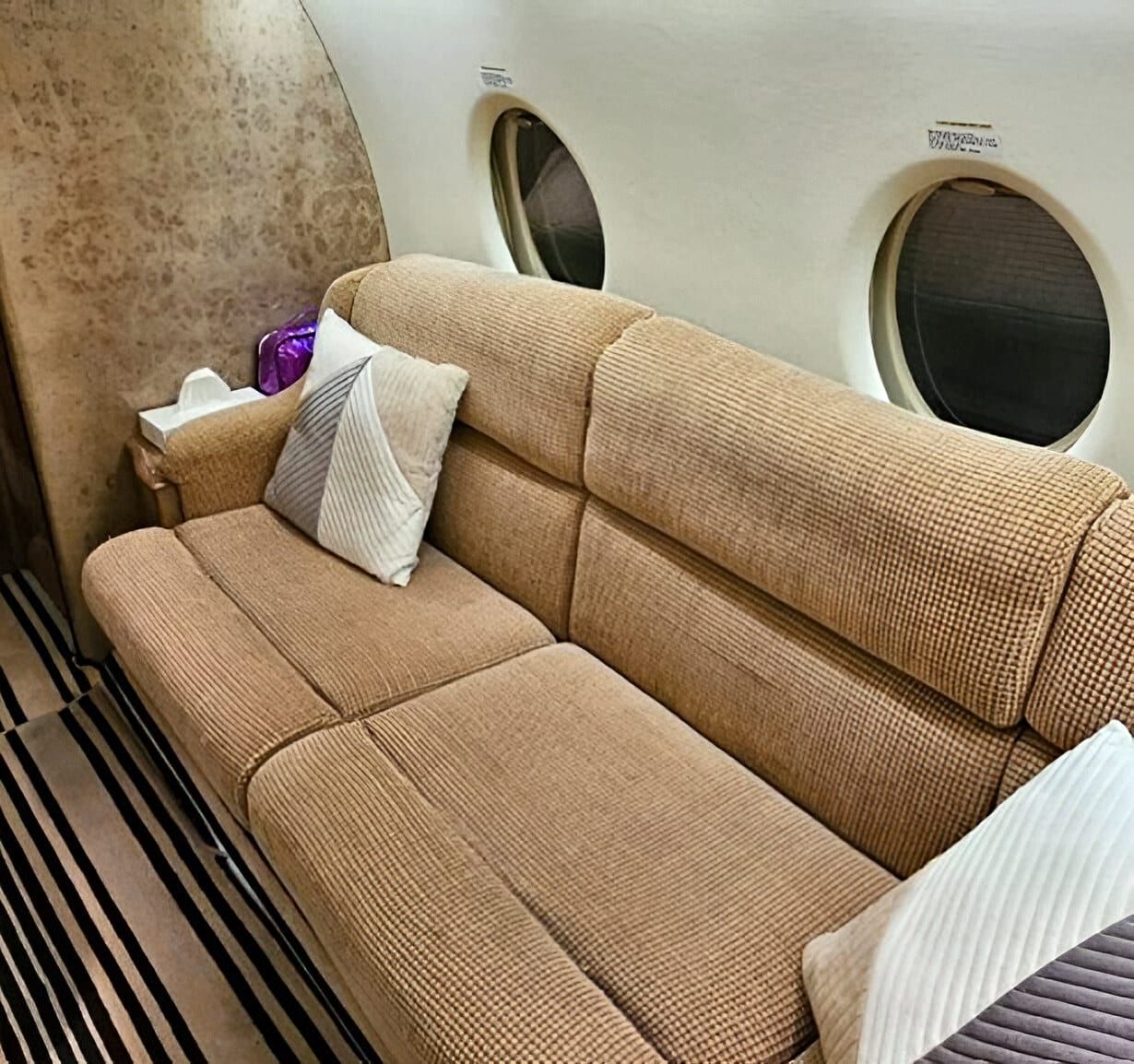

Photograph 6: Berthable divan

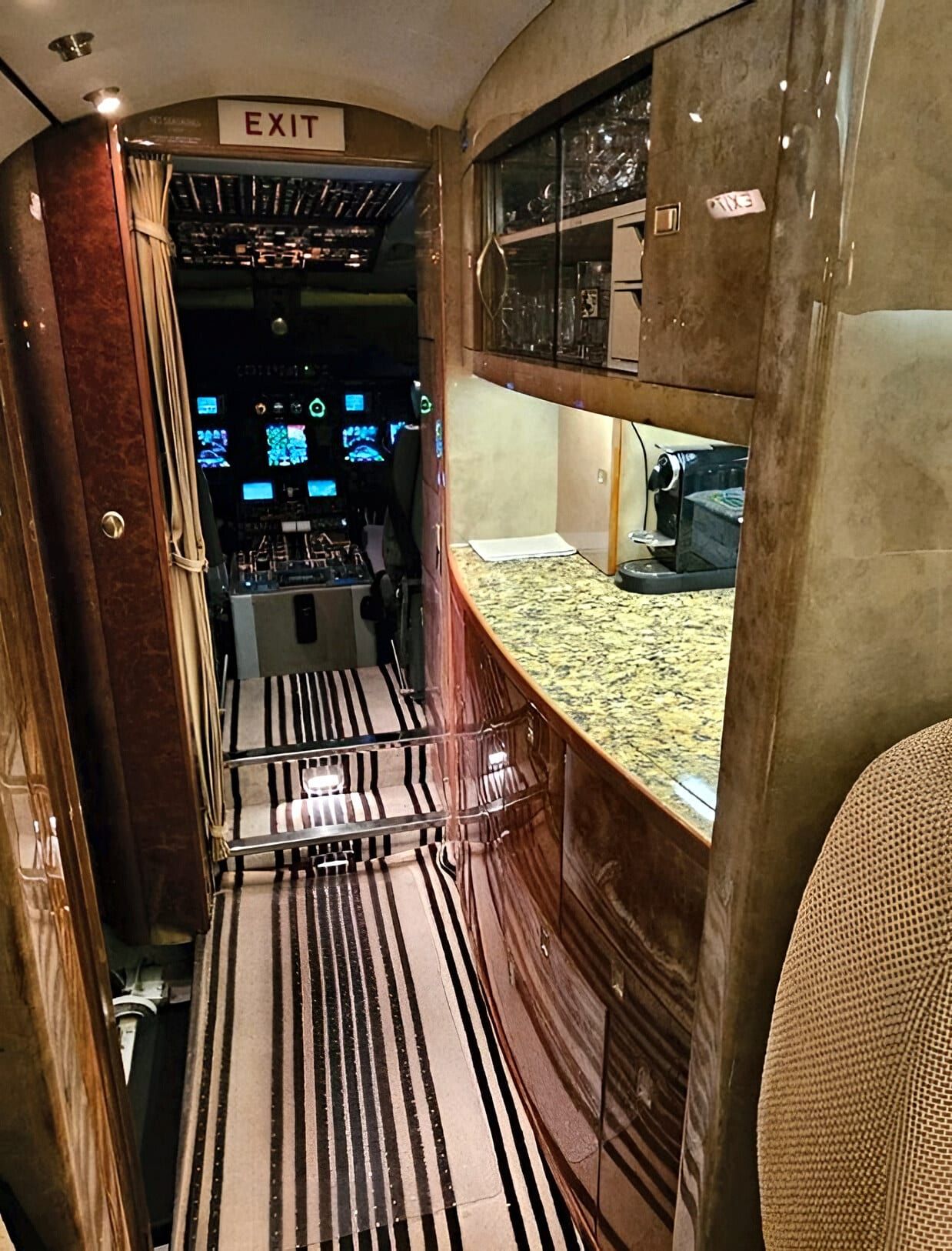

Photograph 7: Galley

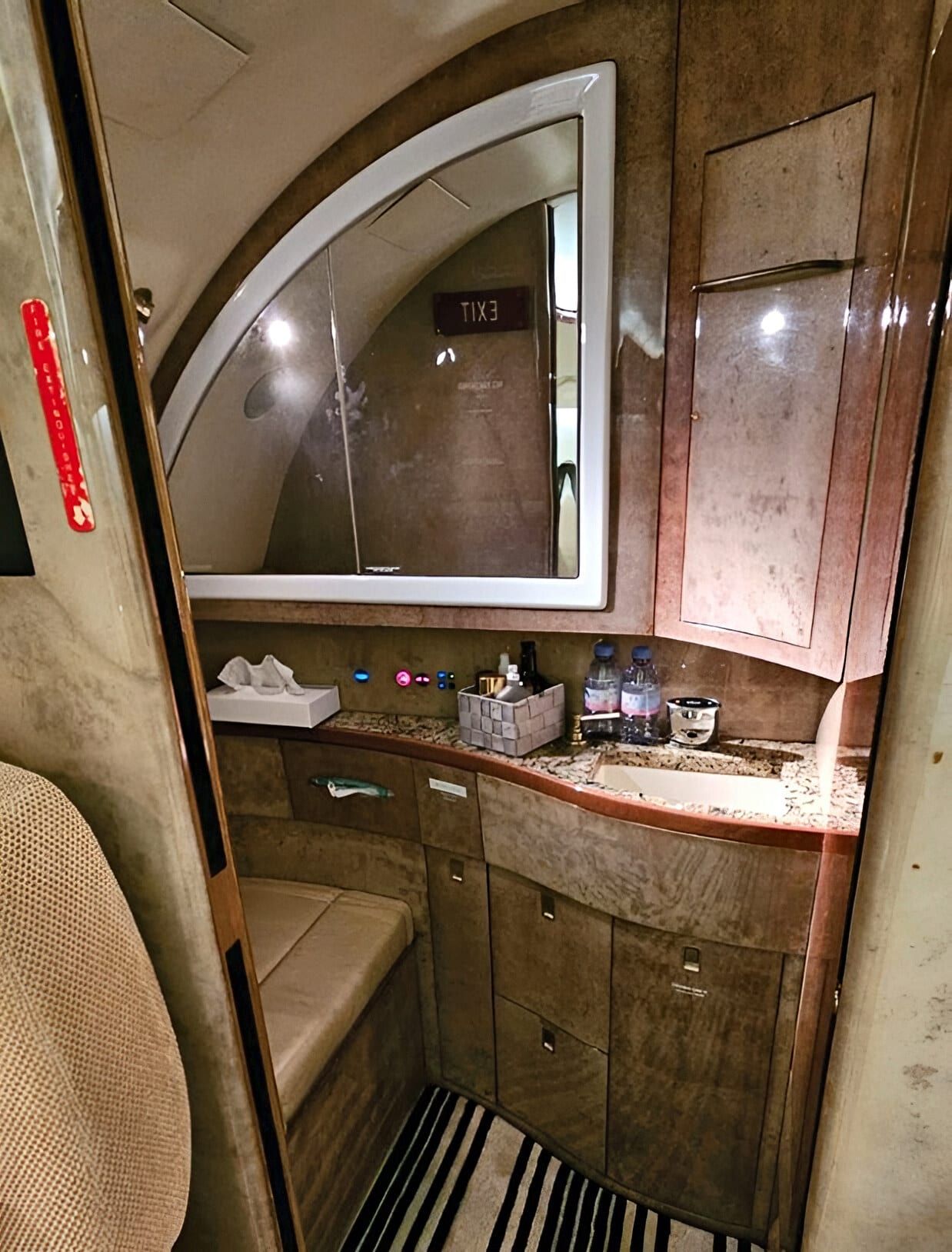

Photograph 8: Lavatory

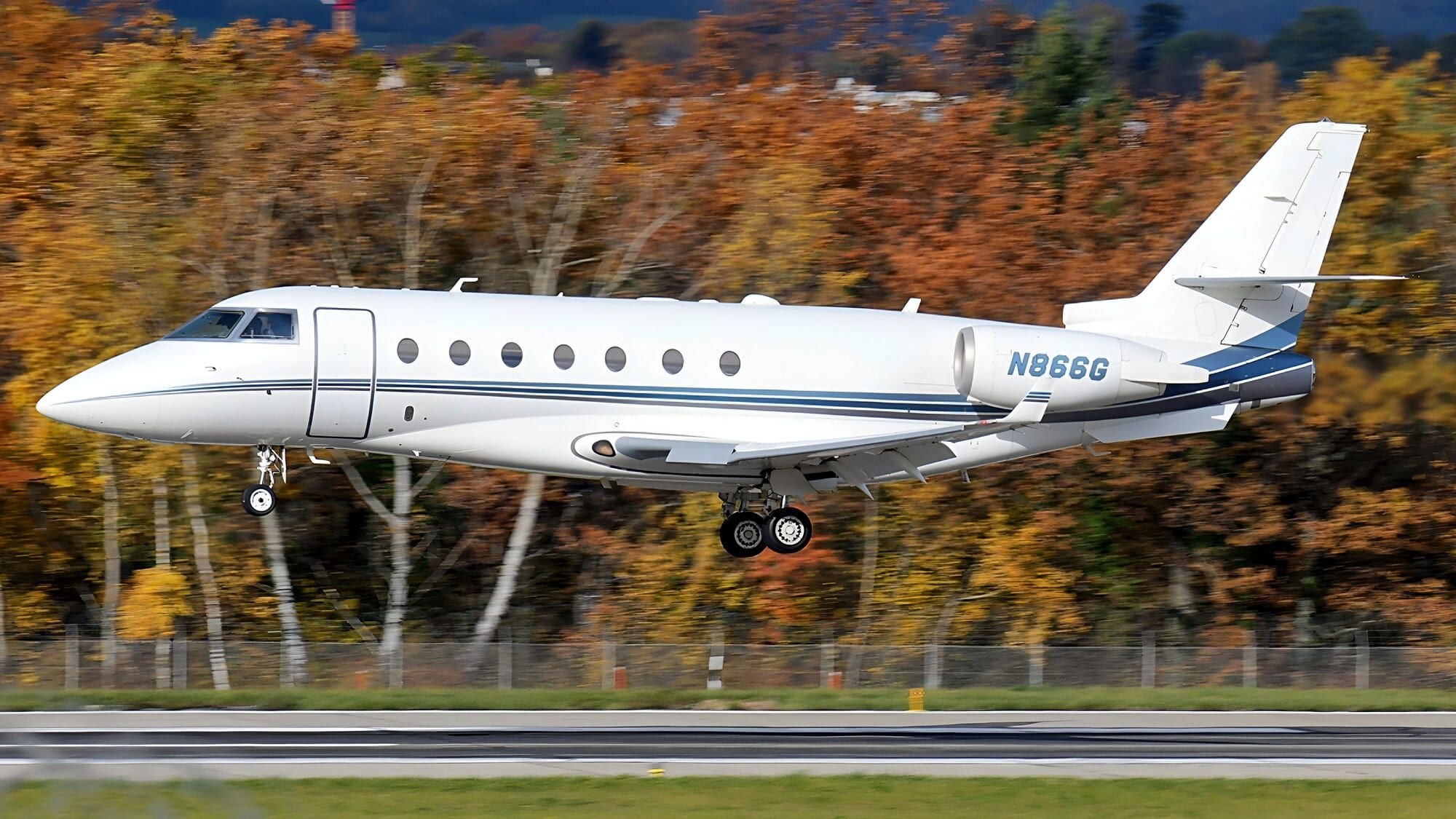

Photograph 9: Side profile

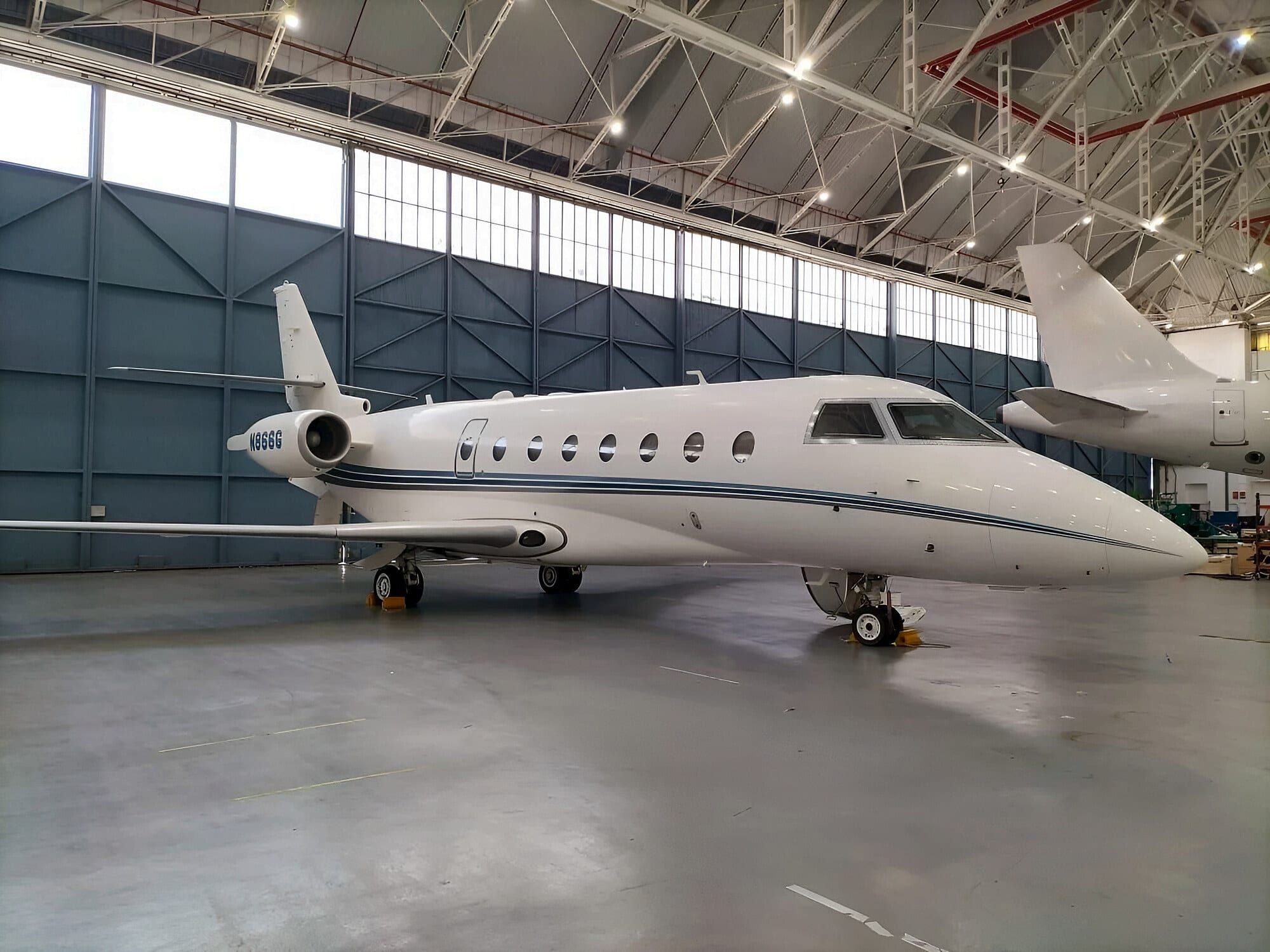

Photograph 10: In the hangar

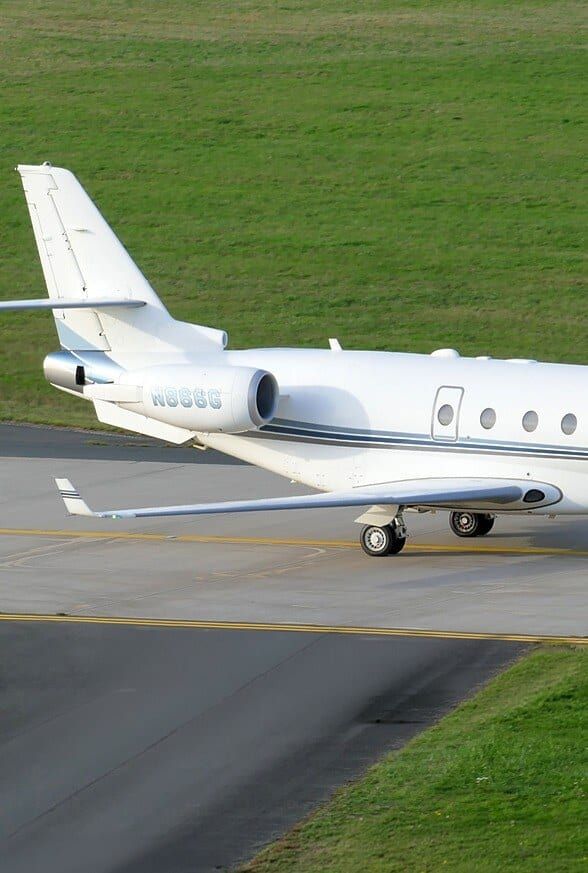

Photograph 11: Rear quarter

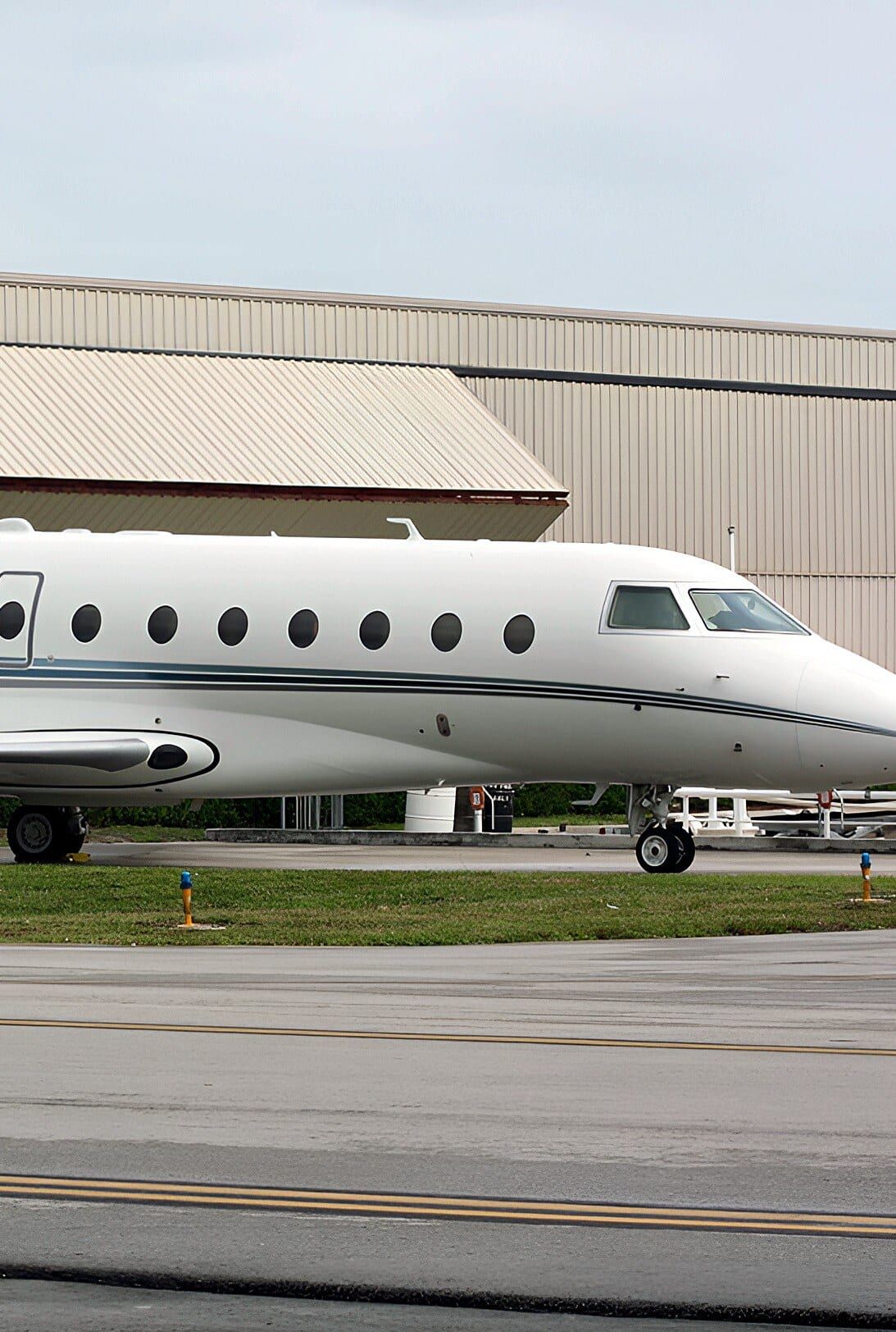

Photograph 12: Nose and flight deck

Gulfstream G200

Available

Super-midsize, transatlantic-capable business jet – 96-month inspection completed September 2026

Year: 2000
Total time: 5,954 h
Location: Spain
Price: Price on request

Enquire about this aircraft WhatsApp Brochure

Overview

2000 Gulfstream G200, serial number 025, powered by two Pratt & Whitney Canada PW306A turbofans. The G200 pairs a stand-up, nine-passenger cabin with a range of approximately 3,400 nm. Privately owned and professionally operated, with the engines on ESP Gold, the APU on MSP Gold and the avionics on CASP.

96-month inspection, September 2026
Engines on ESP Gold, APU on MSP Gold
Collins Pro Line 4 five-tube EFIS with three FMS
ADS-B Out, RVSM and TCAS II Change 7.1
Nine-passenger cabin with berthable divan
Gogo ATG-5000 Wi-Fi and Aero I satcom

Specification

Airframe

Type: Gulfstream G200
Serial number: 025
Total time: 5,954.2 h
Total cycles: 3,478
Entry into service: 25 December 2001

Year of manufacture: 2000
Registration: N866G (United States)
Certification: FAA Part 91
Location: Madrid, Spain
Times as of: 6 June 2025

Maintenance status

Programme / inspection	Status
96-month inspection	Completed September 2026 – Gestair Maintenance, Madrid
Engines / APU	ESP Gold / MSP Gold
Avionics	CASP
Airframe	MSG-3, Gulfstream CMP, CAMP tracked

Weights and performance

Engines: 2 × P&WC PW306A, 6,040 lbf each
Max take-off weight: 35,450 lb (16,080 kg)
Max landing weight: 30,000 lb (13,608 kg)
Basic operating weight: 20,842 lb (2016 specification)

Max fuel: approx. 15,015 lb
Range: approx. 3,400 nm
Max operating altitude: 45,000 ft
Max operating speed: Mach 0.85

Weights and performance figures are published data for the Gulfstream G200 and are provided for information purposes only. Actual figures vary with configuration, weight, temperature and altitude; the Aircraft Flight Manual and current weight-and-balance report govern.

Engines

Two Pratt & Whitney Canada PW306A turbofans – 6,040 lbf each, both enrolled on ESP Gold. The Honeywell GTCP36-150 APU is enrolled on MSP Gold. Figures below are times and cycles since new, from the Gulfstream CMP status report of 21 August 2026.

Engine 1: 5,445.3 h; 3,184 cycles since new
Engine 2: 5,846.3 h; 3,408 cycles since new
Engine programme: ESP Gold; both engines enrolled
APU programme: MSP Gold; GTCP36-150, 3,265 h since new

Item	Engine 1	Engine 2	APU
Model	PW306A	PW306A	GTCP36-150
Serial number	PCE-CC0151	PCE-CC0046	P-137
Time since new	5,445.3 h	5,846.3 h	3,265 h
Cycles since new	3,184	3,408	5,278
Programme	ESP Gold	ESP Gold	MSP Gold

Avionics

Flight deck

Collins Pro Line 4 five-tube EFIS with three FMS

Dual Universal UNS-1C+ and a single UNS-1K+ FMS, Honeywell Laseref IV IRS, ADS-B Out and TCAS II Change 7.1.

RVSM, RNP 10

Five Collins EFD-4077 EFIS / EICAS displays
Dual Universal UNS-1C+ FMS, single UNS-1K+ FMS
Dual Collins FCC-4005 autopilot
Dual Collins ADC-850C ADC and AHC-3000 AHRS
Dual Collins VHF-4000 COM (8.33 kHz)
Dual Collins KHF-950 HF COM
Dual Collins VIR-432 NAV (FM immunity)
Dual Collins ADF-462, DME-442 and ALT-4000
Dual Collins TDR-94D transponders (ADS-B Out)
Dual Collins RTU-4220 radio tuning units
Collins TTR-921 TCAS II Change 7.1
Honeywell Mark V EGPWS with windshear
Collins TWR-850 colour weather radar
Universal CVR-120 and Allied Signal DFDR
RNAV 1, RNAV 5 and RNP 10 capable, RVSM compliant

Additional equipment

Honeywell Laseref IV inertial reference system
Thrane & Thrane TT-5000 Aero I satcom
Gogo ATG-5000 Wi-Fi, text and talk
BF Goodrich WX-1000 Stormscope
RosenView LX moving map
Artex 110-406 ELT
EVAS, oxygen bottles and baggage shelf
APU surge valve exhaust mod, lead acid batteries

Interior

Nine-passenger executive cabin: four club seats with pull-out tables forward, two seats opposite a three-place berthable divan aft. Forward galley and aft lavatory.

Exterior

Snow White fuselage with Cumulus Grey and Metallic Blue stripes.

Specifications and descriptions are provided solely as introductory information and do not constitute representations or warranties. Verification of specifications remains the sole responsibility of the purchaser. The aircraft is subject to prior sale, lease, or removal from the market without notice. See our standard terms and conditions.
